YUCHAI / MINI EXCAVATOR

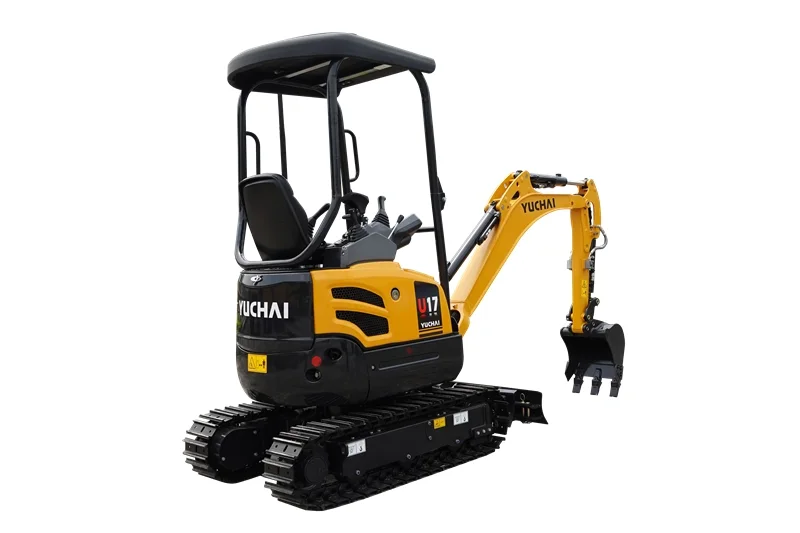

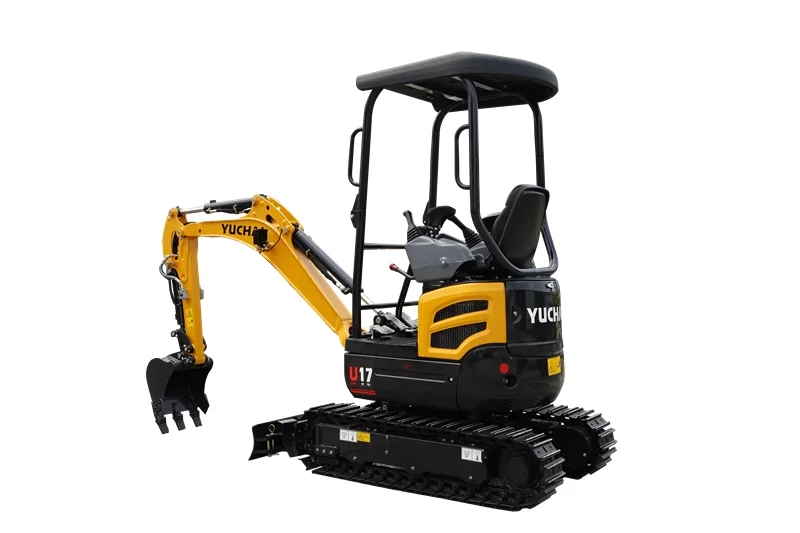

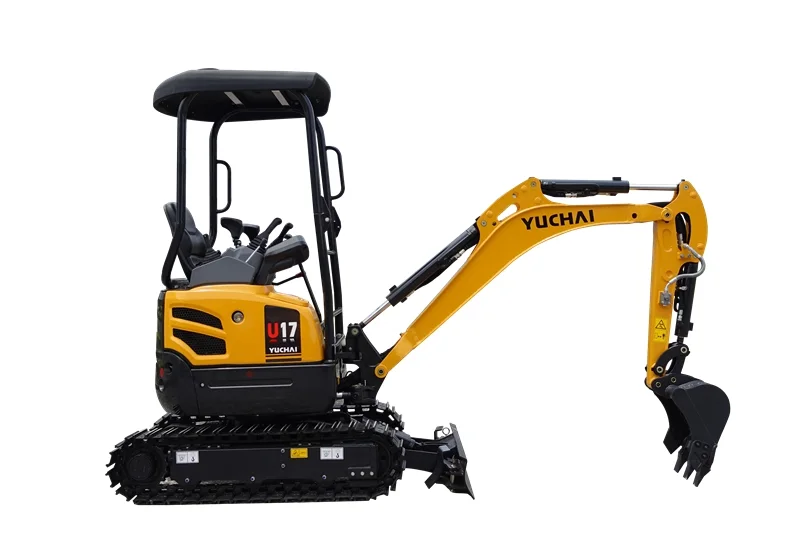

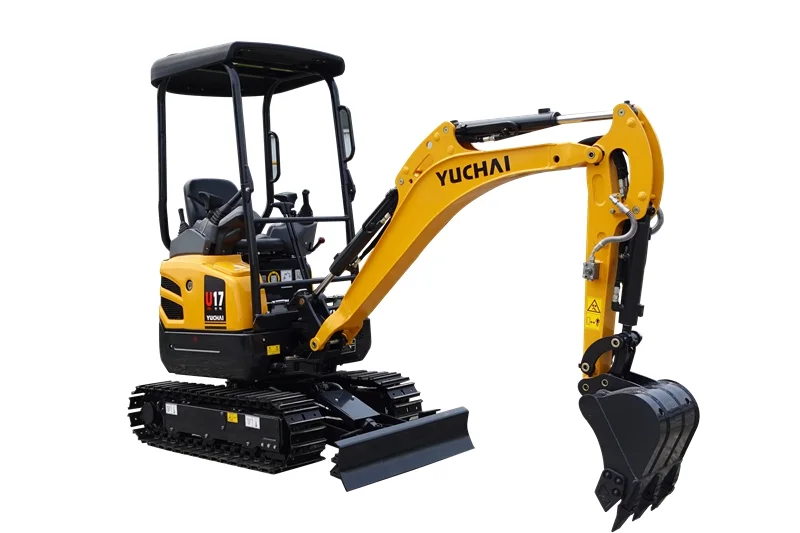

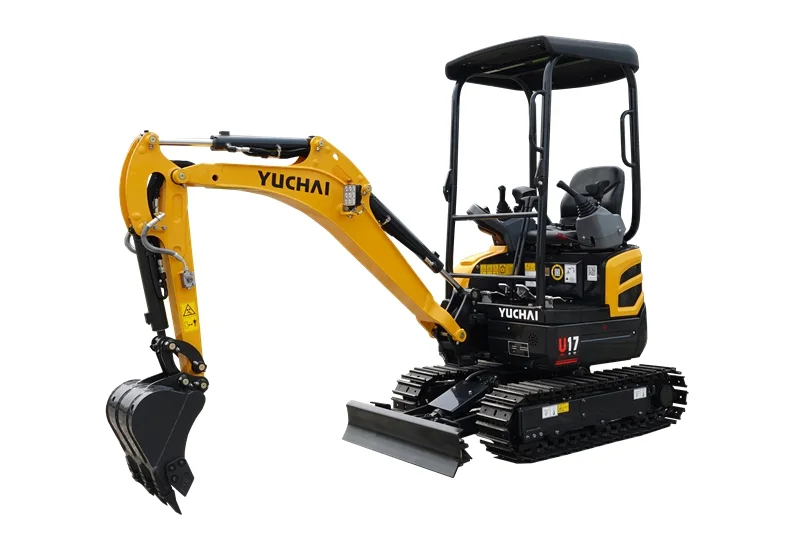

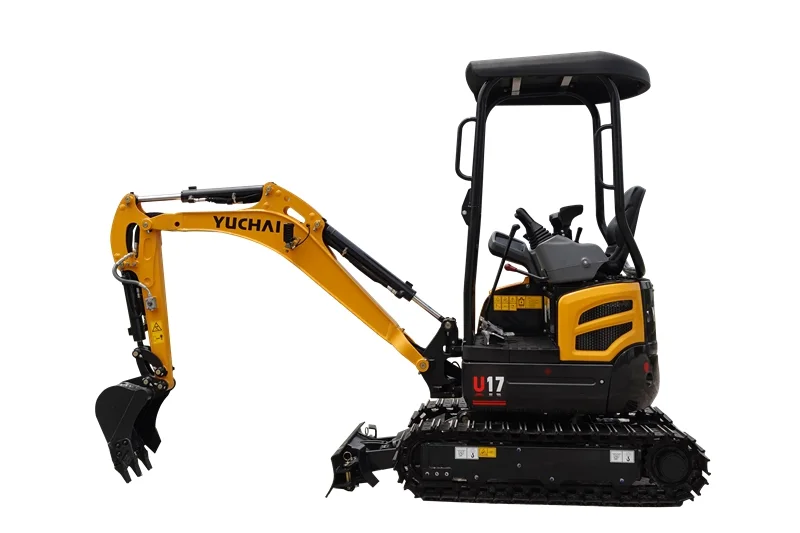

YuchaiU17Mini excavator
A compact footprint. A capable first step.

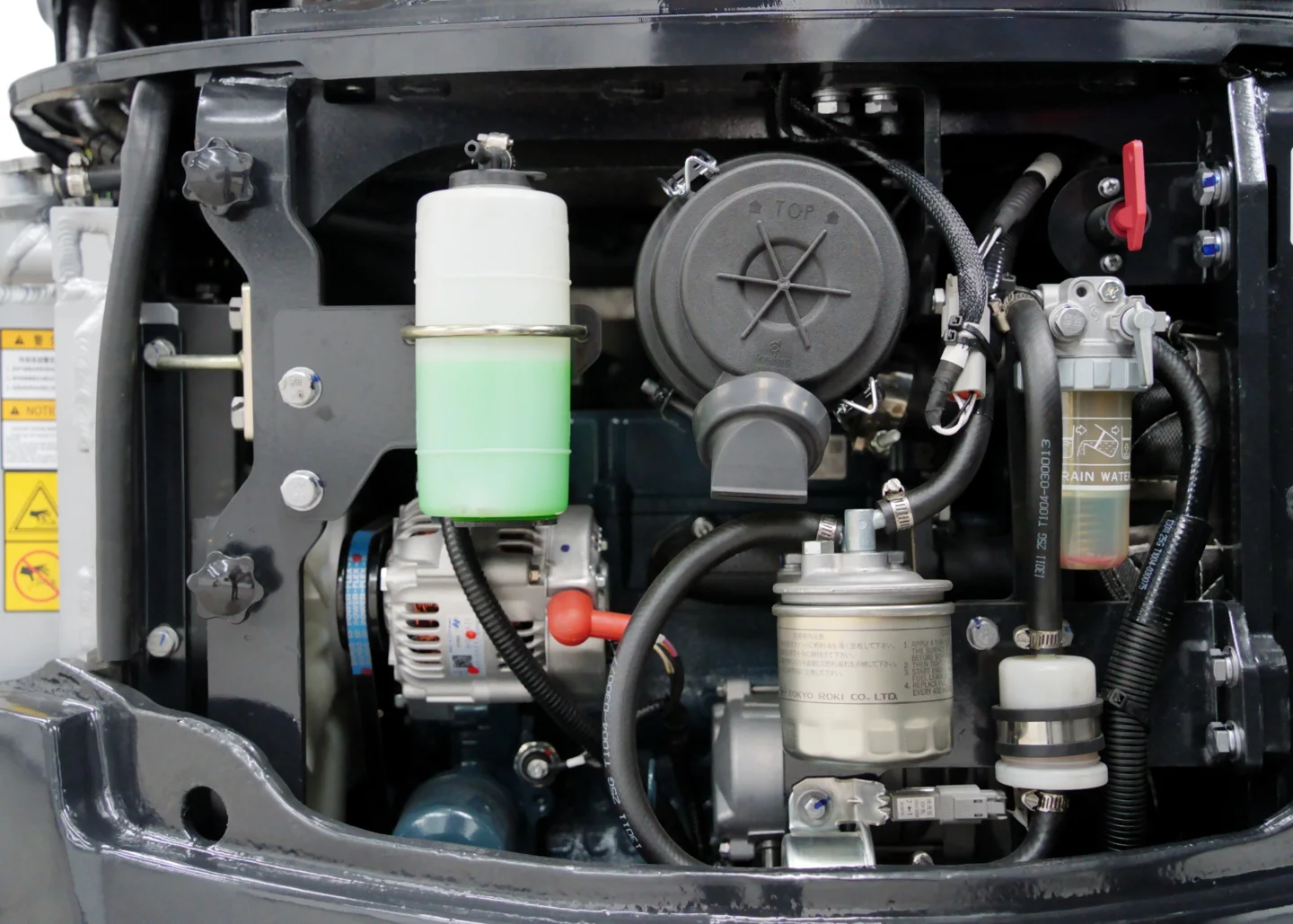

Explore the U17 with a 990 mm transport width, a Kubota D902 engine and an adjustable-width undercarriage.
Machine weight1,720 kg
Max. digging depth2,310 mm
Engine power (manufacturer variants)11.8 kW
THE DETAILS
U17 specifications.
Manufacturer metric specifications. Where two arm values are listed, they refer to standard / longer arm. Engine and other configurations vary; confirm the configuration for your order with our team.
Basic parameters
| Machine weight | 1720 kg |
|---|---|
| Bucket capacity | 0.05 m³ |
| Width of bucket | 450 mm |
Performance parameters
| Engine model | Kubota D902 |
|---|---|
| Emission Standard | EuroV /EPA Tier 4F /CN IV |
| Engine power | 11.8kW/2300rpm |
| Max. Gradeability | 30 ° |
| Max. digging force of arm | 9.5 kN |
| Max. digging force of bucket | 17.2 kN |
| Traveling speed | 2/4 km/h |
| Max. hauling force | 22 kN |
| Slewing speed of platform | 8.5~10.5rpm |
Operating parameters
| Max. digging height | 3600 mm |
|---|---|
| Max. digging depth | 2310 mm |
| Max. digging radius | 3930 mm |
| Max. digging radius on ground level | 3870 mm |
| Max. dumping height | 2485 mm |
| Min. slewing radius | 1500 mm |
| Max. vertical digging depth | 1920 mm |
Transportation dimensions
| Overall length | 3930 mm |
|---|---|
| Overall width | 990 mm |
| Overall height | 2340 mm |
Other Parameters
| Width of undercarriage | 990mm / 1240mm |
|---|---|
| Length of track | 1600 mm |
| Width of track | 230 mm |
| Minimum ground clearance | 150 mm |
| Height between platform and ground | 450 mm |
| Platform tail turning radius | 620 mm |
| Length to center of rollers | 1230 mm |
| Fuel tank capacity | 16 L |
| Hydraulic oil tank capacity | 16 L |
| Track gauge | 760/1010 mm |
| Working Pressure | 24 Mpa |
| Flow rate | 64.4 L/Min |
| AUX1 Pressure/ Flow rate | 21 Mpa | 18/10 L/Min |
| AUX2 Pressure/ Flow rate | 21 Mpa | 36 L/Min |

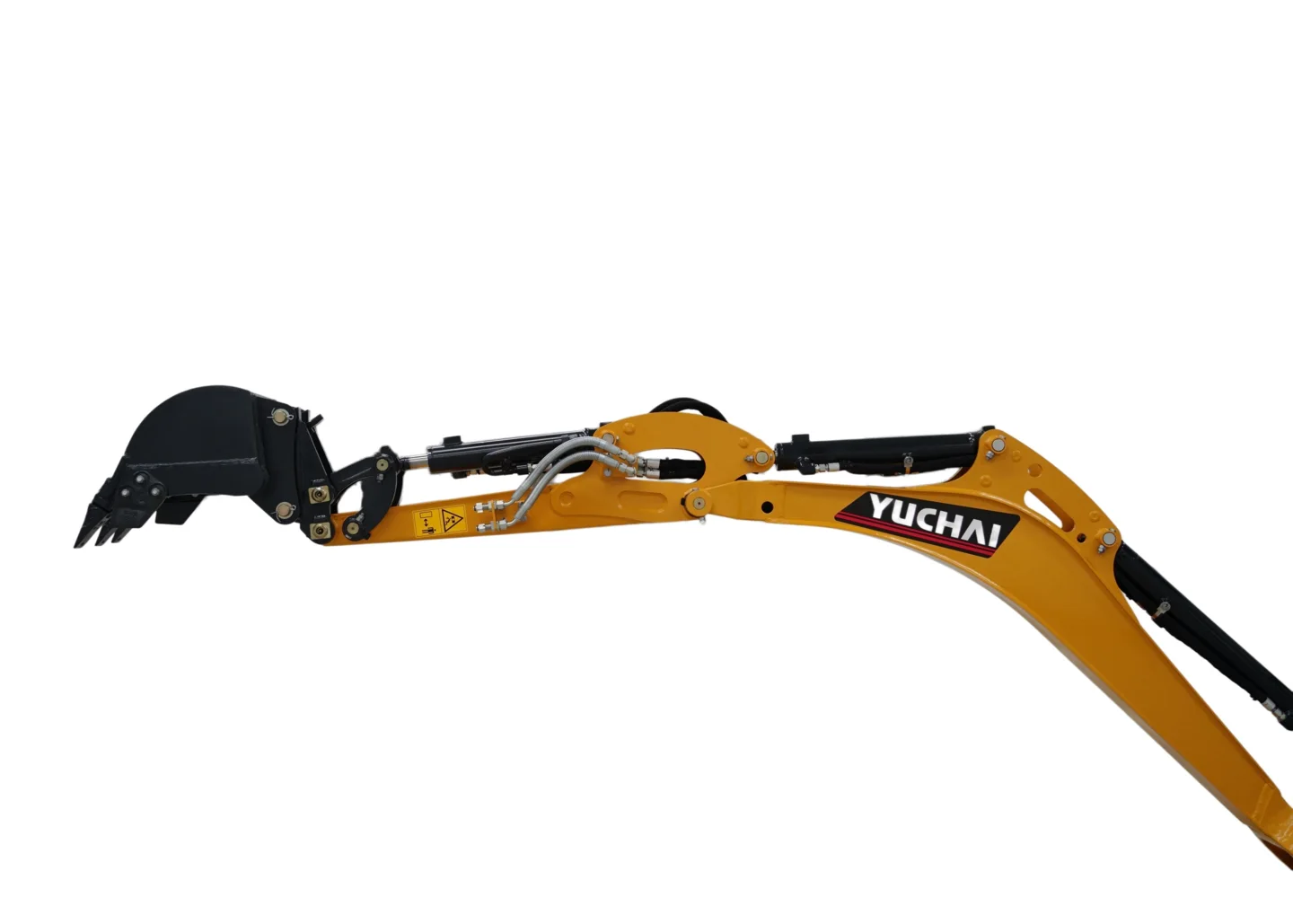

| Arm length | 950 mm |
| Boom length | 1828 mm |
| Steering head angle | 60°(L)/55°(R) |
Source: Yuchai U17 manufacturer product page ↗. Specifications may change. Photos illustrate manufacturer configurations and may show optional equipment. Brochures may describe different configurations or revisions.
TAKE A CLOSER LOOK
The U17 brochure.
Original Yuchai manufacturer PDF · 4.4 MB
